SPECTROSCAN SE

EDXRF sulfur analyzer
Analyzer for quantification of sulfur in liquids by Energy dispersive X-Ray Fluorescence

Description
Technical details
Advantages
Learn more
Applications
Materials

Spectroscan SE provides quick, accurate, and reliable quantification of Sulfur weight content in nearly all types of liquids.

Spectroscan SE uses Energy-dispersive X-Ray fluorescence method that is very easy to run, requires no sample treatment and delivers accurate results with high repeatability quickly.

Spectroscan SE analyzer fully complies with international standards for sulfur analysis by EDXRF technique.

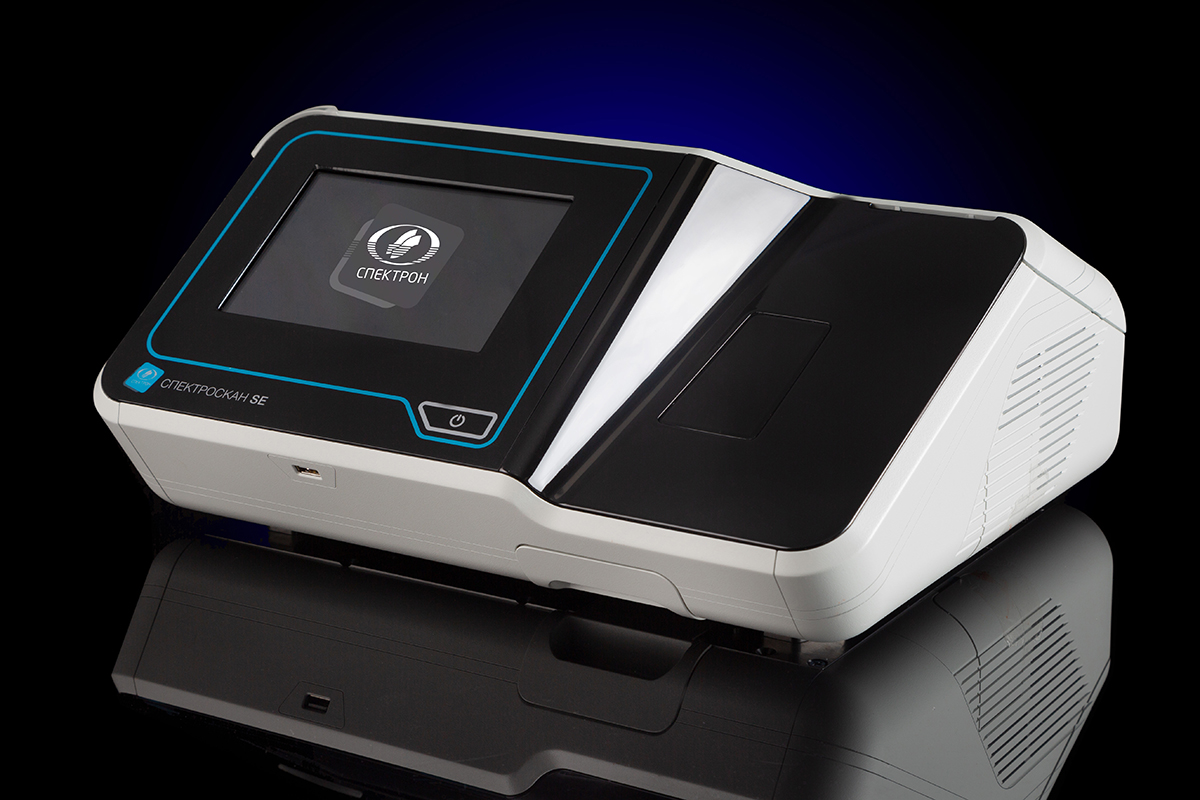

Built-in tablet PC with 7-inch color touch-screen deliver flexibility in creating user calibrations.
Due to side position of X-ray tube and detector to sample compartment costly optic components are protected from sample spill. The accuracy is improved and LOD is lower as no detector protection film is needed for this design.

SULFUR QUANTIFICATION ANALYTICAL PERFORMANCE
Measurement principle	Energy dispersive X-ray fluorescence (EDXRF)
Detector	Gas-sealed proportional counter or silicon drift detector (SDD) as option
Limit of detection (LOD), at 200s measurement time	1.5 ppm
Measurement range	5 ppm – 5.0 %
Repeatability	less than 4.1 ppm for 100 ppm sample less than 200 ppm for 2.0 wt% sample
Measurement time	10 – 999 seconds user selectable. Typical time for two repeats of one sample – 2 minutes

TECHNICAL DATA
X-ray tube and sample geometry	Side position of X-ray tube and detector to sample compartment Prevents tube contamination in case of sample spill
Sample cup	Ventilated, Ø 32 mm, 7 mL volume
Calibration	Pre-uploaded calibrations for ASTM, ISO and other standards, up to 1 000 user calibration curves
User interface	7-inch Color touch-screen Graphs and calibration plots display User, supervisor and service modes
Results print-out	Built-in thermal printer

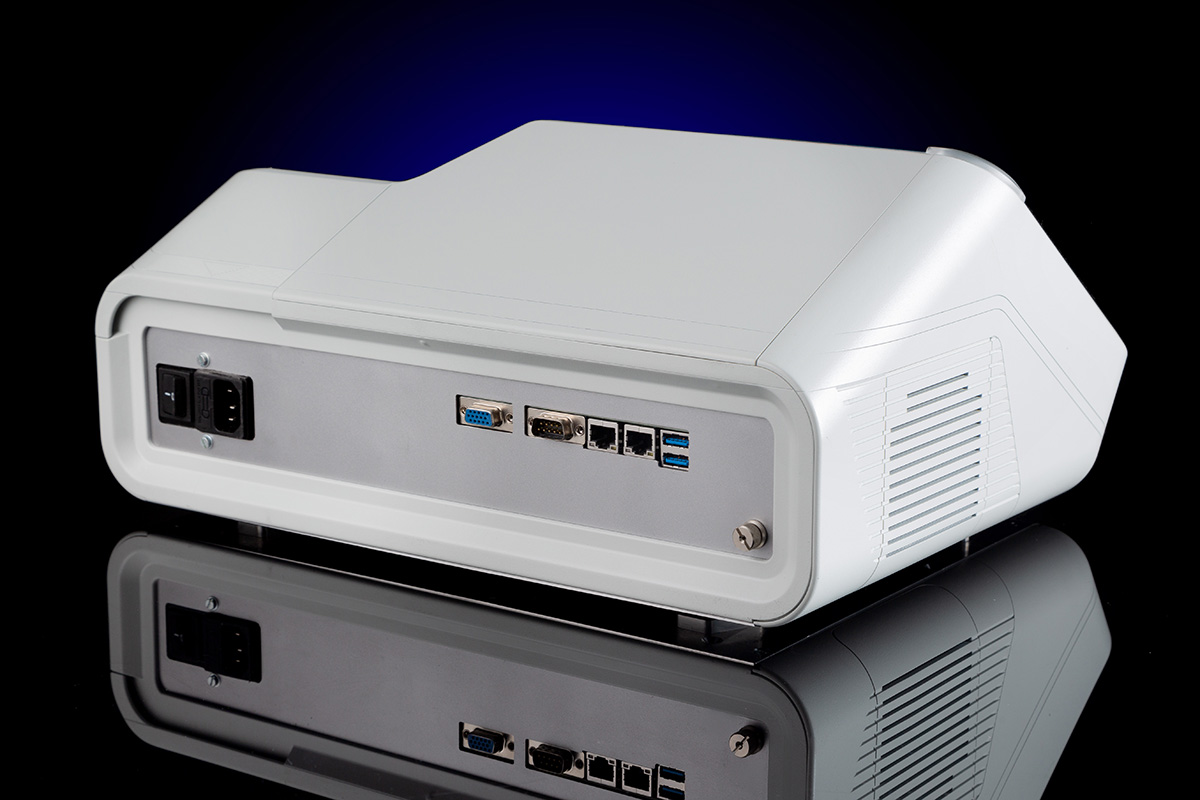

Outputs	RJ-45, RS-232, USB LIMS-connection
Power supply	230 ± 10% V 50 ± 1 Hz Less than 100 VA
Dimensions, W x D x H, less than, mm	400 x 320 x 185
Weight, less than, kg	8.5
Environmental conditions	operation:	+ 10 — + 35 °C
		≤ 80 % humid. at 25°C
	transportation:	– 40 — + 45 °C

Due to the original design no He blowdown is required, providing LOD as low as 1.5 ppm

Simple in operation, now installation required;
Analyzer parameters are suitable for mobile laboratories;
The sample data and analysis results are shown in display and printed out by inbuilt printer;
Special ventilated cups are developed for volatile samples.

Due to lateral position of the sample:

Error due to water and air bulbs are excluded;
Contamination of the inner parts of the analyzer is excluded;
Additional errors due to contamination of the additional protection film is excluded;
Sample loading unit is easily cleaned.

Minimum operator actions:

Put in the number or name of the sample from inbuilt key-board;
Fill in two sample cups with the sample;
Put in the samples into the analyzer and start measurements.

All the rest operations are run automatically.

Spectroscan SE provides quick, accurate, and reliable quantification of Sulfur weight content in nearly all types of liquids.

Spectroscan SE analyzer fully complies with international standards for sulfur analysis by EDXRF technique.
